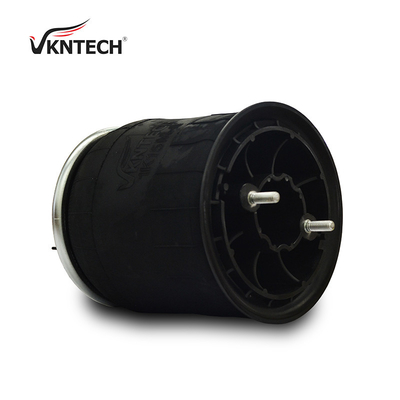

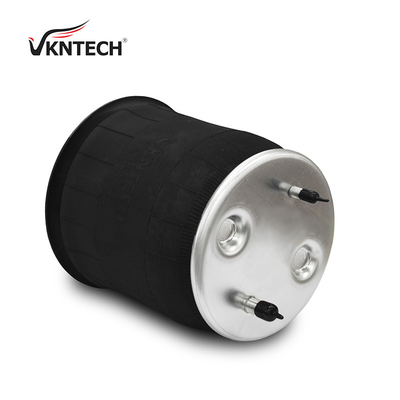

Rubber Navistar 501559C-1 -2 Air Spring Bellow

Product Details:
Place of Origin: Guangdong, China
Brand Name: VKNTECH
Certification: IATF16949/ISO9000
Model Number: 1K9213
Payment & Shipping Terms:
Minimum Order Quantity: 20 Pieces
Price: $1.00 - $50.00/Pieces
Packaging Details: CARTON/PALLET
Supply Ability: 2000000pcs/Year

Detail Information

OE NO.: W01-358-9213 Warranty: 12 Months
Car Model: For Truck And Trailer Navistar Type: By Sea / By Air / By Truck
Material: Imported Natrul Rubber Operation: Gas-filled
Price Condition: FOB China Sample: Available
Brand: VKNTECH Or Customized Service Offered: OEM
Suspension System: Air Spring Suspension Type Of Goods: Air Spring/Air Bags/Air Ballons
Package: Standard Packing Or Customized Payment Term: T/T&L/C
Port: Guangzhou
High Light:

Navistar 501559C-1 -2 air spring bellow


501559C-1 -2 Rubber Air Spring


Navistar Rubber Air Bellow

Product Description

Air Balloon Suspension For Truck And Trailer Navistar 501559C-1 -2 / W01-358-9213/1R12-090 Air Spring


OEM Numbers


Contitech9 10-16 P 441NEWAY905 571 27
TRIANGLE84071660581 C-1

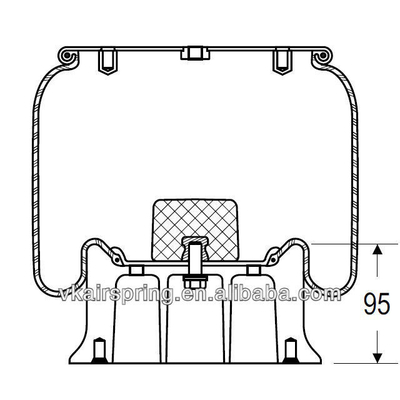

Product Drawing



Rubber Navistar 501559C-1 -2 Air Spring Bellow 2





Technical Data



Air Spring Compressed Height6 in.
Air Spring Type1T Reversible Sleeve
Diameter10.12 in.
Maximum Height20 in.
Piston Height4.87 in.
Bead Plate Top Diameter9 in.
Top Mountstud
Bottom Stud Configuration2
Bottom Mountstud
Top Stud Configuration4
Bead Plate Bottom Diameter10 in.
ApplicationNavistar 501559C-1, Navistar 501559C-2, Navistar 1660581C-1
Bellows1T15M-6 SUPERSEDES 1T15L-8
Design Height (in.)10.5-11.5
Loading Capacity at 20 psig1,500 lbsf
Loading Capacity at 60 psig4,500 lbsf
Loading Capacity at 90 psig6,750 lbsf
Maximum Diameter12.8
Natural FrequencyHz
Operating Temperature (Deg C)57 to -54

Special Notes
The 280-9213 can be used to replace Firestone W01-358-9219 and W01-358-9296 air bags by loosening the base, rotating the base to line up the studs top and bottom, and retightening the base. You will also need to reuse the top bracket off of the W01-358-9296. The W01-358-9219 does not use a top bracket.
Product Description
Spring Pro Bellows Number: 889213
Goodyear Bellows Number: 566-24-3-038
Goodyear Part Number: 1R12-090
Firestone Bellows Number: 1T15M-6
Firestone Part Number: W01-358-9213
Replaces: Navistar 501259C-1, Navistar 501559C-2 and Navistar 1660581C-1, /GM Heavy Duty Truck 350003-3201 (rotate piston), /GM Heavy Duty Truck 352223-3203 (rotate piston), /GM Heavy Duty Truck 350003-3204 (rotate piston), /GM Heavy Duty Truck 350003-3209 (rotate piston), /GM 8061151 (rotate piston & reuse top bracket), /GM 8169868 (rotate piston & reuse top bracket)
Cross References: 350003-3201, 352223-3203, 350003-3204, 350003-3209, 8061151, 8169868, 1R12182, E1R12090, E1R12182, 1R12090, 1R12204, 501559C2, 566243067, 9219, 9296, 8407, 8441, 167240C1, 1R12182, 1R12400, 1R12-090, 352-9213, 1660581C1, 501559C1, 501559C2, SC2048, 8407, 64308, 9 10-16 P 441, 910-16P441, 91016P441, W01-358-9213, W013589213, W01-358-9219, W013589219, W01-358-9296, W013589296
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
