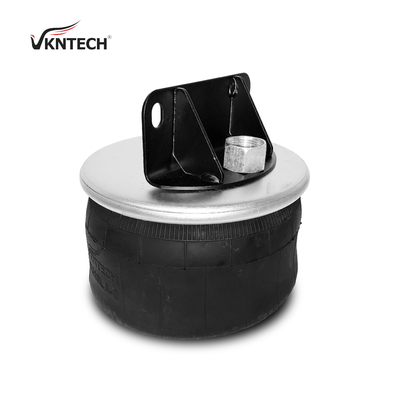

KENWORTH C81-1005 Air Suspension Springs Firestone W01-358-9541 FLEETPRIDE AS9541 TRIANGLE AS-8861 VKNTECH 1K9541

Minimum Order Quantity : 10 PCS Price : $1.00 - $45.00/Pieces
Packaging Details : CARTON/PALLET Delivery Time : 2-8 working days
Payment Terms : L/C, T/T, Western Union Supply Ability : 200000000 per year
Place of Origin: Guangdong, China Brand Name: VKNTECH
Certification: IATF16949/ISO9000 Model Number: 1K9541

Detail Information

OE NO.: W01-358-9541 Warranty: 1YEAR
Type: By Sea / By Air / By Truck Car Model: For Bus/truck&trailer
Material: Imported Natrul Rubber Operation: Gas-filled
Brand: VKNTECH Or Customized Suspension System: Air Spring Suspension
Type Of Goods: Air Spring/Air Bags/Air Ballons Package: Standard Packing Or Customized
Payment Term: T/T&L/C Port: Guangzhou
High Light:

W01-358-9541 Air Suspension Springs

,

1K9541 Air Suspension Springs

Product Description



KENWORTH C81-1005 TRUCK AIR SPRING FIRESTONE W01-358-9541 FLEETPRIDE AS9541 TRIANGLE AS-8861 VKNTECH 1K9541 QUALITY



OEM REFERANCE





VKNTECH NUMBER 1K9541
OEM NUMBERS

FLEETPRIDE
AS9541

TRIANGLE
AS-8861

TRP
AS95410

AUTOMANN
1DK20H-9541

KENWORTH
C81-1005

Firestone
W01-358-9541

WORKING TEMPERATURE -40°C bis +70°C



KEY FEATURES OF Viking AIR SPRINGS

- Easy to identify part number permanently engraved on the rubber.
- 4.00-5.00mm trick rubber that exceeds OEM requirements.
- OE standard
- Stronger fabric-cord.
- Rubber has high durable, tensile strength and elastic property .



Specification



Air Spring Air Fitting Size Air Inlet 1 5/16-12 UNF
Air Spring Compressed Height 3.90 in.
Air Spring # of Lobes 1 Solid Sleeve
Air Spring Type 1T - Reversible Sleeve
Bead Plate (Top) & Deflated Bellows O.D. 9 and 9.12 in.
Bead Plate (Top) Mounting Bolts Dimension Center to Center 2.25 in.
Diameter 9.12 in.
Extended Height Deflated 12.00 in.
Finished Weight 11.0 lbs
Piston Height 2.8 in.
Bead Plate Top Diameter 9 in.
Bead Plate Bottom Diameter 8.18 in.
Application Airglide 690
Assembled Product Weight (lb) 11.5
Bellows 1T15LA-0
Bottom Bead Plate Hardware Key Bold or Stud 1/2-13
Design Height (in.) 6月7日
Loading Capacity at 20 psig 1,320 lbsf
Loading Capacity at 60 psig 3,960 lbsf
Loading Capacity at 90 psig 5,940 lbsf
Maximum Diameter 11.7
Maximum Rebound Height (in.) 11.5
Minimum Jounce Height (in.) 3.75
Natural Frequency Hz
Operating Temperature (Deg C) 57 to -54


Product Description



Spring Pro Bellow Number: 889541

Goodyear Bellows Number: n/a

Goodyear Part Number: n/a



Firestone Bellows Number: 1T15LA-0 or 1T15KW-0

Firestone Part Number: W01-358-9541






Replaces: Kenworth C81-1005, Airglide 200 05/05/03 or later, Airglide 460, Airglide 690

Cross References: C811005, 66111, C81-1005, 9 9-10 S 861, 99-10S861, 9910S861, W01-358-9541, W013589541, 9547, W013589547, W01-358-9547, C811004, C81-1004






Product Drawing



KENWORTH C81-1005 Air Suspension Springs Firestone W01-358-9541 FLEETPRIDE AS9541 TRIANGLE AS-8861 VKNTECH 1K9541 1



Warranty of Vkntech Air Spring





Vkntech air spring made of high quality materials(imported natural rubber), the warranty period of One Year.

Our air spring provide high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.

Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
