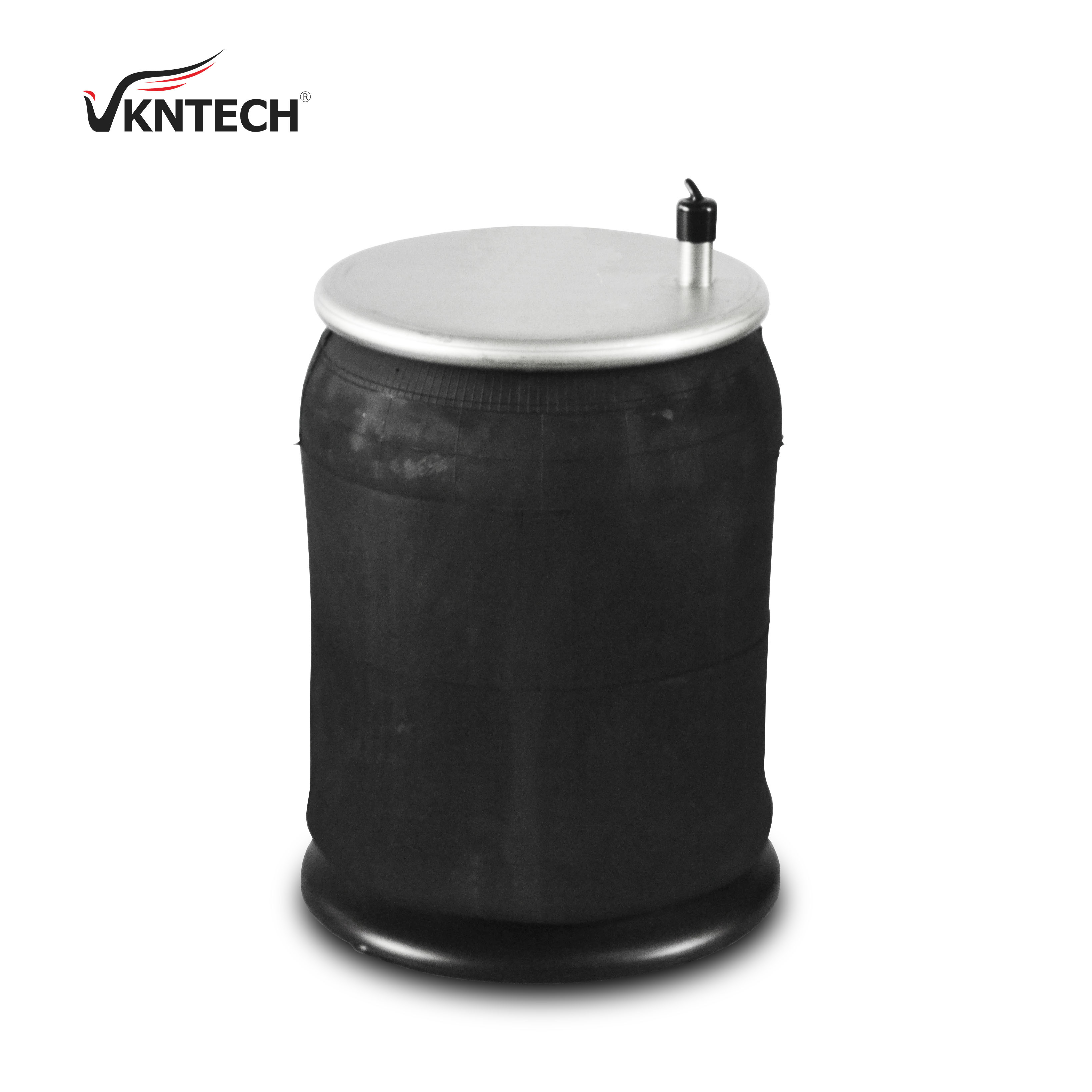

AS9265 Air Suspension Springs W01-358-9265 HT-250U-Y For HENDRICKSON HT Series Truck

Minimum Order Quantity : 10 Pieces Price : $1.00 - $50.00/Pieces
Packaging Details : CARTON/PALLET Supply Ability : 2000000pcs/Year
Place of Origin: Guangdong, China Brand Name: VKNTECH
Certification: IATF16949/ISO9000 Model Number: 1K9265

Detail Information

OE NO.: 1R12-375 Warranty: 12 Months
Type: By Sea/by Air/by Truck Car Model: For Bus/truck&trailer
Price Condition: FOB China Sample: Available
Material: Imported Natrul Rubber Operation: Gas-filled
Brand: VKNTECH Or Customized Service Offered: OEM
Suspension System: Air Spring Suspension Type Of Goods: Air Spring/Air Bags/Air Ballon
Package: Standard Packing Or Customized Payment Term: T/T&L/C
Port: Guangzhou
High Light:

AS9265 Air Suspension Springs

,

HT-250U-Y hendrickson suspension air bags

,

Air Suspension Springs W01-358-9265

Product Description

Road Choice AS9265 Air Spring Same As Firestone W01-358-9265 / Goodyear 1R12-375 For HENDRICKSON HT Series Truck





OEM Reference





CONTITECH 9 10-19 P 435 DAYTON 352-9265
  9 10-19 P 435 HENDRICKSON HT-250U-Y
FIRESTONE 1T15MM-9   S20124
  1T15MM-9   C20413
FIRESTONE 2 W01 358 9265   HT-250T
  W01 358 9265   HT-250U
GOODYEAR 1R12-375   S20124
  1R12-375   HT-250 T
      HT-250U
      C20413
    LOADGUARD SC2134
      SC2759
      SC2759
    RIDEWELL 1003589245C
    TRIANGLE 8435
      8435
    85 101 155
      85101155





Product Drawing

AS9265 Air Suspension Springs W01-358-9265 HT-250U-Y For HENDRICKSON HT Series Truck 0





Technical Data






ir Spring Air Fitting Size Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T.
Air Spring Compressed Height 7.3 in.
Air Spring # of Lobes 1 Solid Sleeve
Air Spring Type 1T - Reversible Sleeve
Bead Plate (Top) & Deflated Bellows O.D. 9 and 10.12 in.
Diameter 10.12 in.
Extended Height Deflated 24.7 in.
Finished Weight 16.7 lbs
Piston (Bottom) Mounting Bolt Dimensions Center to Center 4.00 in.
Piston Height 5.68 in.
Bead Plate Top Diameter 9 in.
Bead Plate Bottom Diameter 11.06 in.
Application Hendrickson Trailer HT-250U (all others), Hendrickson Trailer HT-250U-Y (9Y-001),
Bottom Bead Plate Hardware Key 4 x Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons





Special Notes


This air bag has 1 stud on top and a 4-hole 11" wide base. See 280-8944 for a similar, but shorter, air bag.


Product Description

Piston Material: Steel
Goodyear Bellows Number: 566-24-3-066
Goodyear Part Number: 1R12-375
Firestone Bellows Number: 1T15MM-9
Firestone Part Number: W01-358-9265



Replaces: Hendrickson Trailer S20124, Hendrickson Trailer HT-250T, Hendrickson Trailer C20413 (rotate piston to 45 degrees), Hendrickson Trailer Ht-250U, Hendrickson Trailer HT-250U-Y (9Y-001)



Cross References: 1R12375, 1T15MM9, NAD25396, 8435, C20124, S20124, C30124, W013589265, W01 358 9265, 1R12-375, 64288, 9 10-19 P 435, 910-19P435, 91019P435
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
