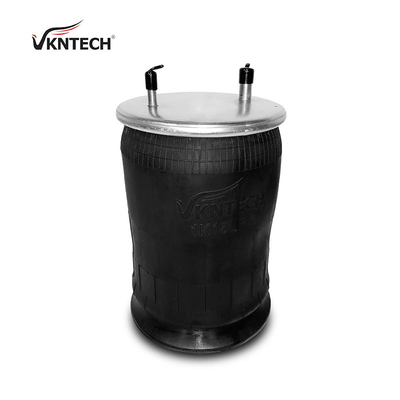

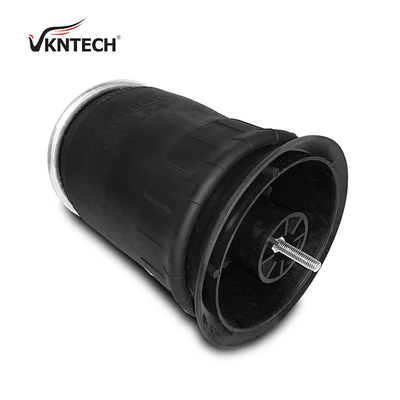

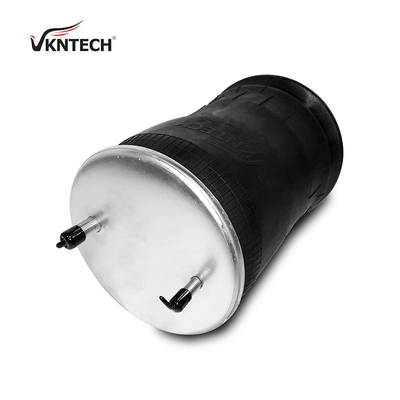

Holland 90557120 Truck Air Spring

Product Details:
Place of Origin: Guangdong, China
Brand Name: VKNTECH
Certification: IATF16949/ISO9000
Model Number: 1K9293
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: $1.00 - $50.00/Pieces
Packaging Details: CARTON/PALLET
Supply Ability: 2000000pcs/Year

Detail Information

OE NO.: W01-358-9293 Warranty: 12 Months
Type: By Sea / By Air / By Truck Car Model: For Bus/truck&trailer
Price Condition: FOB China Sample: Available
Material: Imported Natrul Rubber Operation: Gas-filled
Brand: VKNTECH Or Customized Service Offered: OEM
Suspension System: Air Spring Suspension Type Of Goods: Air Spring/Air Bags/Air Ballons
Package: Standard Packing Or Customized Payment Term: T/T&L/C
Port: Guangzhou
High Light:

Holland 90557120 Truck Air Spring


90557120 Air Spring for Truck


Holland 90557120 truck suspension air bags

Product Description

Truck And Trailer Air Suspension Bag For Holland (Neway) 90557120 (RL196-14, W01-358-9293 RL196A-14) Air Spring



OEM Numbers




Goodyear 1R10-120
Firestone W01-358-9293
Dayton N/A
Automann 1DK20F-9293
TRP AS92930

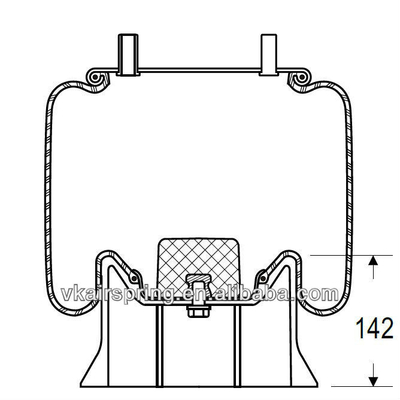

Product Drawing


Holland 90557120 Truck Air Spring 1





Technical Data



Air Spring Air Fitting Size Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T.
Air Spring Compressed Height 6.5 in.
Air Spring # of Lobes 1 Solid Sleeve
Air Spring Type 1T - Reversible Sleeve
Bead Plate (Top) & Deflated Bellows O.D. 9 and 9.12 in.
Bead Plate (Top) Mounting Bolts Dimension Center to Center 5.50 in.
Diameter 9.12 in.
Extended Height Deflated 18.9 in.
Finished Weight 11.6 lbs
Piston Height 4.75 in.
Bead Plate Top Diameter 9 in.
Bead Plate Bottom Diameter 9.5 in.
Application Holland (Neway) 90557120 (RL196-14, RL196A-14)
Assembled Product Weight (lb) 12.9
Bellows 1T15LP-5
Bottom Bead Plate Hardware Key Bold or Stud 1/2-13
Design Height (in.) 12-13.5
Loading Capacity at 20 psig 1,240 lbsf
Loading Capacity at 60 psig 3,720 lbsf
Loading Capacity at 90 psig 5,580 lbsf
Maximum Diameter 10.7
Maximum Rebound Height (in.) 18.9
Minimum Jounce Height (in.) 6.5
Natural Frequency Hz
Operating Temperature (Deg C) 57 to -54
Top Bead Plate Hardware Key Bold or Stud 1/2-13



Product Description


- Easy to identify part number permanently engraved on the rubber.
- 4.5-5.00mm trick rubber that exceeds OEM requirements.
- 25% stronger 4140 grade steel studs.
- Stronger composite pistons.
- Highest leak test ratio after final assembly.

Firestone W01-358-9293, Goodyear 1R11-912, 1R12-501, 1R10-120, Holland (Neway) 905-57-120, Triangle 8424, Contitech 99K-15P424

Firestone W013589293, Goodyear 1R11912, 1R12501, 1R10120, Holland (Neway) 90557120, Triangle 8424, Contitech 99K15P424

Firestone 9293

Extended Height: 18.90"
Compressed Height: 6.50"
Top Plate Width: 9.00"
Piston Width: 9.50"
Weight: 14.80 lbs
