Gas Filled Truck Air Spring W01-358-9547 Goodyear 1R12-712 For Air Ride Suspension System

Minimum Order Quantity : 10 Pieces Price : $1.00 - $45.00/Pieces
Packaging Details : CARTON/PALLET Supply Ability : 2000000pcs/Year
Place of Origin: Guangdong, China Brand Name: VKNTECH
Certification: IATF16949/ISO9000 Model Number: 1K9547

Detail Information

OE NO.: W01-358-9547 Warranty: 12 Months
Type: By Sea/by Truck/by Air Car Model: For Bus/truck&trailer
Price Condition: FOB China Sample: Available
Material: Imported Natrul Rubber Operation: Gas-filled
Brand: VKNTECH Or Customized Service Offered: OEM
Suspension System: Air Spring Suspension Type Of Goods: Air Spring/Air Bags/Air Ballons
Package: Standard Packing Or Customized Payment Term: T/T&L/C
Port: Guangzhou
High Light:

Truck Air Spring W01-358-9547

,

1R12-712 goodyear air ride bags

,

Truck Air Spring W01-358-9547

Product Description

Rubber air bellow W01-358-9547 / Air bag 1R12-712 Gas-filled air ride suspension system Plastic piston






OEM







Contitech 99-9 P859 KENWORTH C81-1004
Firestone W01-358-9547
  1T15LA-1
  1T15KW-1
Goodyear 1R11-268
  566223021

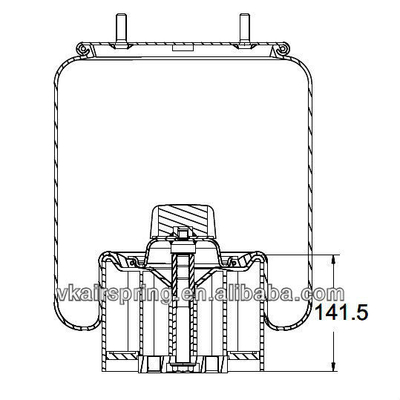

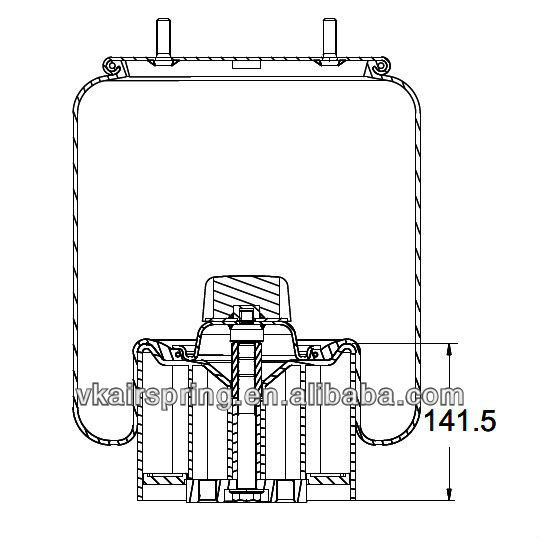

Drawing



Gas Filled Truck Air Spring W01-358-9547 Goodyear 1R12-712 For Air Ride Suspension System 1











Specification





Air Spring Air Fitting Size Air Inlet 1 5/16-12 UNF
Air Spring Compressed Height 3.9 in.
Air Spring # of Lobes 1 Solid Sleeve
Air Spring Type 1T - Reversible Sleeve
Bead Plate (Top) & Deflated Bellows O.D. 9 and 9.12 in.
Bead Plate (Top) Mounting Bolts Dimension Center to Center 2.25 in.
Diameter 9.12 in.
Extended Height Deflated 11.00 in.
Finished Weight 11.0 lbs
Piston Height 2.8 in.
Bead Plate Top Diameter 9 in.
Bead Plate Bottom Diameter 8.18 in.
Application Airglide 400
Assembled Product Weight (lb) 11.2
Bellows 1T15LA-(-1)
Bottom Bead Plate Hardware Key Bold or Stud 1/2-13
Design Height (in.) 5.5-6.25
Loading Capacity at 20 psig 1,320 lbsf
Loading Capacity at 60 psig 3,960 lbsf
Loading Capacity at 90 psig 5,940 lbsf
Maximum Diameter 11.7
Maximum Rebound Height (in.) 10.63
Minimum Jounce Height (in.) 3.75
Natural Frequency Hz
Operating Temperature (Deg C) 57 to -54







  • ✅ Air Spring for Kenworth Trucks - Lifetime Warranty
  • ✅ Replaces Kenworth: C81-1005, C81-1004, Airglide 200 05/05/03 or later, Airglide 460, Airglide 690, Firestone: W01-358-9541, W01-358-9547, Contitech: 9 9-10 P 861.
  • ✅ Extended Height: 11.80", Compressed Height: 6.25"
  • ✅ Top Plate Width: 9.00", Piston Width: 8.18", Weight: 11.10 lbs.
  • ✅ Weight: 11.10 lbs
