B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318

Contact Now

B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318

Minimum Order Quantity :	20 Pieces	Price :	$1.00 - $50.00/Pieces
Packaging Details :	CARTON/PALLET	Supply Ability :	2000000pcs/Year

Place of Origin:	Guangdong, China	Brand Name:	VKNTECH
Certification:	IATF16949/ISO9000	Model Number:	1K9152

Detail Information
OE NO.:	W01-358-9152	Car Model:	For HENDRICKSON TRAILER
Warranty:	12 Months	Price Condition:	FOB China
Type:	By Sea / By Air / By Truck	Sample:	Available
Material:	Imported Natrul Rubber	Operation:	Gas-filled
Brand:	VKNTECH Or Customized	Service Offered:	OEM
Suspension System:	Air Spring Suspension	Type Of Goods:	Air Spring/Air Bags/Air Ballons
Package:	Standard Packing Or Customized	Payment Term:	T/T&L/C
Port:	Guangzhou
Highlight:	1R14-019 Air Spring

Product Description

OEM Numbers

Contitech	11 10.5-21 A 318	MFG.SV.# NEWAY	90044197
Goodyear	1R14-019	NEWAY	90557005
Firestone	W01-358-9152		90557069
	W01-358-9158	HENDRICKSON	B-12514-004
	1T19L-11/F-11		B-12514-011
		HENDRICKSON TRAILER	S2063
		RIDEWELL	1003589158C

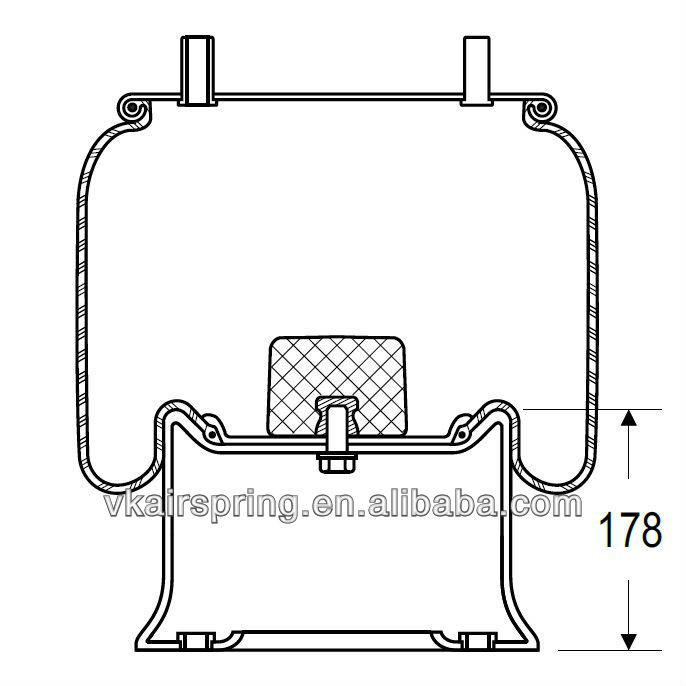

Product Drawing

B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318 1

Specifications

Air Spring Compressed Height	8.7 in.
Air Spring Type	1T Reversible Sleeve
Diameter	10.62 in.
Maximum Height	27.3 in.
Piston Height	7 in.
Bead Plate Top Diameter	11.31 in.
Top Mount	stud
Bottom Stud Configuration	4
Bottom Mount	flat
Top Stud Configuration	5
Bead Plate Bottom Diameter	10.3 in.
Application	Hendrickson Trailer S2063, Holland (Neway) 90557069,MFG.SV.# Neway 90044197, Porcupine, Peerless
Assembled Product Weight (lb)	24
Bellows	1T19L-11
Design Height (in.)	14.5-18.5
Loading Capacity at 20 psig	1,760 lbsf
Loading Capacity at 60 psig	5,280 lbsf
Loading Capacity at 90 psig	7,920 lbsf
Maximum Diameter	13.7
Minimum Jounce Height (in.)	8.88
Natural Frequency	Hz
Operating Temperature (Deg C)	57 to -54

Featues and Benefits

· Require little to no maintenance
· Pressure tested for quality assurance
· Increase towing and hauling capabilities
· Replace worn out oem air bags
· Increase life of other suspension components
· NO maintenance required – these air bags are true workhorses and do not require any upkeep after the initial installation
· Direct replacement from OEM air springs – no additional components required
· Great for extending the life of your suspension as a whole – VKNTECH air springs are the most conveinent and reliable solution
· Spring Pro Bellows Number: TR9158
· Goodyear Bellows Number: 566-28-3-020
· Goodyear Part Number: 1R14-030
· Firestone Bellows Number: 1T19F-11 or 1T19L-11
· Firestone Part Number: W01-358-9158
· Replaces: Hendrickson Can. B-12514-004, Hendrickson Can. B-12514-011, Neway 90557005, Hendrickson Trailer S2063, Neway 90557069, Ridewell 1003589158C, Mfg SV# Neway 90044197
· Cross References: E1R14030, 1R14030, 9152, 8318, 8369, 352-9158, B-12514-004, B-2063, 36514-1, 36514-4, 554780C1, SC2045, AR-1215-1-F, 90557005, 90557069, S-2574C, AS622-9158, 64352, 11 10.5-21 A 318, 1110.5-21A318, 1110.521A318, W01-358-9158, W013589158
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.

Tag:

Air Suspension Springs(168)

Truck Air Spring(96)

Trailer Air Springs(171)

Cabin Air Springs(130)

Convoluted Air Spring(109)

Seat Air Spring(28)

Air Suspension Compressor(34)

Bus Air Springs(22)

Audi Air Spring(10)

BMW Air Spring(10)

Land Rover Air Spring(10)

Mercedes Benz Air Spring(21)

Volkswagen Air Spring(10)

Porsche Air Spring(10)

Air Suspension Repair Kit(11)

B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318

1R14-019 Air Spring

· Require little to no maintenance

· Pressure tested for quality assurance

· Increase towing and hauling capabilities

· Replace worn out oem air bags

· Increase life of other suspension components

· NO maintenance required – these air bags are true workhorses and do not require any upkeep after the initial installation

· Direct replacement from OEM air springs – no additional components required

· Great for extending the life of your suspension as a whole – VKNTECH air springs are the most conveinent and reliable solution

· Spring Pro Bellows Number: TR9158

· Goodyear Bellows Number: 566-28-3-020

· Goodyear Part Number: 1R14-030

· Firestone Bellows Number: 1T19F-11 or 1T19L-11

· Firestone Part Number: W01-358-9158

· Replaces: Hendrickson Can. B-12514-004, Hendrickson Can. B-12514-011, Neway 90557005, Hendrickson Trailer S2063, Neway 90557069, Ridewell 1003589158C, Mfg SV# Neway 90044197

· Cross References: E1R14030, 1R14030, 9152, 8318, 8369, 352-9158, B-12514-004, B-2063, 36514-1, 36514-4, 554780C1, SC2045, AR-1215-1-F, 90557005, 90557069, S-2574C, AS622-9158, 64352, 11 10.5-21 A 318, 1110.5-21A318, 1110.521A318, W01-358-9158, W013589158

A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
